C/C++ 中的 Trie 数据结构

一个 Trie数据结构作为一个动态数组的容器,在本文中,我们将研究如何在 **C/C++**中实现一个 Trie。

这是基于树的数据结构,但不一定存储密钥,在这里,每个节点只有一个值,该值是根据位置定义的。

因此,每个节点的值表示前缀,因为它是经过一系列匹配的根节点的点。

我们将这些匹配称为 前缀匹配,因此,我们可以使用Tries来存储字典中的单词!

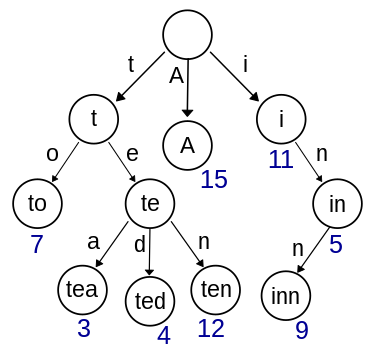

例如,在上图中,根节点是空的,所以每个字符串都匹配了根节点。

在这里,钥匙只存储在叶节点位置上,因为前缀匹配停止在任何叶节点上,所以任何非叶节点不会 NOT存储整个字符串,而仅存储前缀匹配字符。

由于所有这些原因,试图被称为 前缀树,现在让我们来了解我们如何从程序员的角度来实现这个数据结构。


在 C/C++ 中实现 Trie 数据结构

让我们先写下 Trie 结构,一个 Trie Node主要有两个组成部分:

  • 这是孩子
  • 一个标记标志一个叶节

但是,由于我们也会打印 Trie,如果我们能够在 data部分中存储另一个属性,那么就更容易了。

因此,让我们定义 TrieNode结构. 在这里,因为我只会存储较低的字母,我会将此作为一个 26空树实现。

 1// The number of children for each node
 2// We will construct a N-ary tree and make it
 3// a Trie
 4// Since we have 26 english letters, we need
 5// 26 children per node
 6#define N 26
 7
 8typedef struct TrieNode TrieNode;
 9
10struct TrieNode {
11    // The Trie Node Structure
12    // Each node has N children, starting from the root
13    // and a flag to check if it's a leaf node
14    char data; // Storing for printing purposes only
15    TrieNode* children[N];
16    int is_leaf;
17};

现在我们已经定义了我们的结构,让我们写函数以在内存中初始化一个 TrieNode,并释放它的指针。

 1TrieNode* make_trienode(char data) {
 2    // Allocate memory for a TrieNode
 3    TrieNode* node = (TrieNode*) calloc (1, sizeof(TrieNode));
 4    for (int i=0; i<N; i++)
 5        node->children[i] = NULL;
 6    node->is_leaf = 0;
 7    node->data = data;
 8    return node;
 9}
10
11void free_trienode(TrieNode* node) {
12    // Free the trienode sequence
13    for(int i=0; i<N; i++) {
14        if (node->children[i] != NULL) {
15            free_trienode(node->children[i]);
16        }
17        else {
18            continue;
19        }
20    }
21    free(node);
22}

将一句话插入三

现在我们将写入insert_trie()函数,该函数将指针带到根节点(顶部节点)并将一个单词插入到 Trie。

插入程序很简单,它通过字符字符重复,并评估相对位置。

例如,一个b字符将有1的位置,所以它将是第二个孩子。

 1for (int i=0; word[i] != '\0'; i++) {
 2    // Get the relative position in the alphabet list
 3    int idx = (int) word[i] - 'a';
 4    if (temp->children[idx] == NULL) {
 5        // If the corresponding child doesn't exist,
 6        // simply create that child!
 7        temp->children[idx] = make_trienode(word[i]);
 8    }
 9    else {
10        // Do nothing. The node already exists
11    }

我们将按字符匹配前缀字符,如果它不存在的话,就简单地初始化一个节点。

否则,我们只是继续在链子上移动,直到我们匹配了所有字符。

1temp = temp->children[idx];

最后,我们将插入所有未匹配的字符,我们将返回更新的Trie。

 1TrieNode* insert_trie(TrieNode* root, char* word) {
 2    // Inserts the word onto the Trie
 3    // ASSUMPTION: The word only has lower case characters
 4    TrieNode* temp = root;
 5
 6    for (int i=0; word[i] != '\0'; i++) {
 7        // Get the relative position in the alphabet list
 8        int idx = (int) word[i] - 'a';
 9        if (temp->children[idx] == NULL) {
10            // If the corresponding child doesn't exist,
11            // simply create that child!
12            temp->children[idx] = make_trienode(word[i]);
13        }
14        else {
15            // Do nothing. The node already exists
16        }
17        // Go down a level, to the child referenced by idx
18        // since we have a prefix match
19        temp = temp->children[idx];
20    }
21    // At the end of the word, mark this node as the leaf node
22    temp->is_leaf = 1;
23    return root;
24}

搜索一个词在三

现在我们已经在 Trie 上实现了插入,让我们看看搜索给定的模式。

我们将尝试与字符符串符号匹配,使用上面的相同前缀匹配策略。

如果我们已经到达链条的尽头,还没有找到匹配,这意味着链条不存在,因为一个完整的前缀匹配还没有完成。

为了正确返回,我们的模式必须准确匹配,我们完成匹配后,我们必须达到叶节。

 1int search_trie(TrieNode* root, char* word)
 2{
 3    // Searches for word in the Trie
 4    TrieNode* temp = root;
 5
 6    for(int i=0; word[i]!='\0'; i++)
 7    {
 8        int position = word[i] - 'a';
 9        if (temp->children[position] == NULL)
10            return 0;
11        temp = temp->children[position];
12    }
13    if (temp != NULL && temp->is_leaf == 1)
14        return 1;
15    return 0;
16}

好吧,所以我们已经完成了插入搜索程序。

要测试它,我们首先会写一个print_tree()函数,它会打印每个节点的数据。

 1void print_trie(TrieNode* root) {
 2    // Prints the nodes of the trie
 3    if (!root)
 4        return;
 5    TrieNode* temp = root;
 6    printf("%c -> ", temp->data);
 7    for (int i=0; i<N; i++) {
 8        print_trie(temp->children[i]);
 9    }
10}

现在我们已经完成了这一点,让我们到现在为止运行完整的程序,以检查它是否正常工作。

  1#include <stdio.h>
  2#include <stdlib.h>
  3#include <string.h>
  4
  5// The number of children for each node
  6// We will construct a N-ary tree and make it
  7// a Trie
  8// Since we have 26 english letters, we need
  9// 26 children per node
 10#define N 26
 11
 12typedef struct TrieNode TrieNode;
 13
 14struct TrieNode {
 15    // The Trie Node Structure
 16    // Each node has N children, starting from the root
 17    // and a flag to check if it's a leaf node
 18    char data; // Storing for printing purposes only
 19    TrieNode* children[N];
 20    int is_leaf;
 21};
 22
 23TrieNode* make_trienode(char data) {
 24    // Allocate memory for a TrieNode
 25    TrieNode* node = (TrieNode*) calloc (1, sizeof(TrieNode));
 26    for (int i=0; i<N; i++)
 27        node->children[i] = NULL;
 28    node->is_leaf = 0;
 29    node->data = data;
 30    return node;
 31}
 32
 33void free_trienode(TrieNode* node) {
 34    // Free the trienode sequence
 35    for(int i=0; i<N; i++) {
 36        if (node->children[i] != NULL) {
 37            free_trienode(node->children[i]);
 38        }
 39        else {
 40            continue;
 41        }
 42    }
 43    free(node);
 44}
 45
 46TrieNode* insert_trie(TrieNode* root, char* word) {
 47    // Inserts the word onto the Trie
 48    // ASSUMPTION: The word only has lower case characters
 49    TrieNode* temp = root;
 50
 51    for (int i=0; word[i] != '\0'; i++) {
 52        // Get the relative position in the alphabet list
 53        int idx = (int) word[i] - 'a';
 54        if (temp->children[idx] == NULL) {
 55            // If the corresponding child doesn't exist,
 56            // simply create that child!
 57            temp->children[idx] = make_trienode(word[i]);
 58        }
 59        else {
 60            // Do nothing. The node already exists
 61        }
 62        // Go down a level, to the child referenced by idx
 63        // since we have a prefix match
 64        temp = temp->children[idx];
 65    }
 66    // At the end of the word, mark this node as the leaf node
 67    temp->is_leaf = 1;
 68    return root;
 69}
 70
 71int search_trie(TrieNode* root, char* word)
 72{
 73    // Searches for word in the Trie
 74    TrieNode* temp = root;
 75
 76    for(int i=0; word[i]!='\0'; i++)
 77    {
 78        int position = word[i] - 'a';
 79        if (temp->children[position] == NULL)
 80            return 0;
 81        temp = temp->children[position];
 82    }
 83    if (temp != NULL && temp->is_leaf == 1)
 84        return 1;
 85    return 0;
 86}
 87
 88void print_trie(TrieNode* root) {
 89    // Prints the nodes of the trie
 90    if (!root)
 91        return;
 92    TrieNode* temp = root;
 93    printf("%c -> ", temp->data);
 94    for (int i=0; i<N; i++) {
 95        print_trie(temp->children[i]);
 96    }
 97}
 98
 99void print_search(TrieNode* root, char* word) {
100    printf("Searching for %s: ", word);
101    if (search_trie(root, word) == 0)
102        printf("Not Found\n");
103    else
104        printf("Found!\n");
105}
106
107int main() {
108    // Driver program for the Trie Data Structure Operations
109    TrieNode* root = make_trienode('\0');
110    root = insert_trie(root, "hello");
111    root = insert_trie(root, "hi");
112    root = insert_trie(root, "teabag");
113    root = insert_trie(root, "teacan");
114    print_search(root, "tea");
115    print_search(root, "teabag");
116    print_search(root, "teacan");
117    print_search(root, "hi");
118    print_search(root, "hey");
119    print_search(root, "hello");
120    print_trie(root);
121    free_trienode(root);
122    return 0;
123}

在使用您的gcc编译器编译后,您将获得以下输出。

1Searching for tea: Not Found
2Searching for teabag: Found!
3Searching for teacan: Found!
4Searching for hi: Found!
5Searching for hey: Not Found
6Searching for hello: Found!
7 -> h -> e -> l -> l -> o -> i -> t -> e -> a -> b -> a -> g -> c -> a -> n ->

虽然它可能是显而易见的,它是如何被打印的,但线索是看 print_tree() 方法. 因为它打印了当前节点,然后所有的孩子,顺序确实表明这一点。

那么,现在就来实施删除方法吧!

删除一个单词从三

实际上,这两种方法比其他两种方法更复杂。

没有任何类型的格式算法,因为我们没有明确的方式来存储密钥和值。

但是,对于本文的目的,我只会处理删除,如果要删除的单词是叶节,也就是说,它必须全程匹配前缀,直到叶节节。

让我们开始吧,我们对删除函数的签名将是:

1TrieNode* delete_trie(TrieNode* root, char* word);

正如前面提到的,这只会删除前缀匹配完成直到一个叶节点,所以让我们写另一个函数 `is_leaf_node()',这对我们来说是这样做的。

 1int is_leaf_node(TrieNode* root, char* word) {
 2    // Checks if the prefix match of word and root
 3    // is a leaf node
 4    TrieNode* temp = root;
 5    for (int i=0; word[i]; i++) {
 6        int position = (int) word[i] - 'a';
 7        if (temp->children[position]) {
 8            temp = temp->children[position];
 9        }
10    }
11    return temp->is_leaf;
12}

好了,所以完成了,让我们看看我们的delete_trie()方法的草案。

 1TrieNode* delete_trie(TrieNode* root, char* word) {
 2    // Will try to delete the word sequence from the Trie only it
 3    // ends up in a leaf node
 4    if (!root)
 5        return NULL;
 6    if (!word || word[0] == '\0')
 7        return root;
 8    // If the node corresponding to the match is not a leaf node,
 9    // we stop
10    if (!is_leaf_node(root, word)) {
11        return root;
12    }
13    // TODO
14}

完成此检查后,我们现在知道我们的词将以叶节结尾。

但是还有另一个情况要处理呢?如果有另一个字符串具有当前字符串的部分前缀匹配的话呢?

例如,在下面的 Trie 中,单词 tedte 之前有部分共同的匹配。

因此,如果发生这种情况,我们不能简单地将整个序列从 t 到 a 删除,因为这时,两条链将被删除,因为它们是链接的!

因此,我们需要找到最深的点,直到这样的比赛发生,只有在那之后,我们才能删除剩余的链条。

这涉及到找到最长的前缀字符串,所以让我们写另一个函数。

1char* longest_prefix(TrieNode* root, char* word);

这将返回 Trie 中最长的匹配,而不是当前的单词(‘word’)。

 1char* find_longest_prefix(TrieNode* root, char* word) {
 2    // Finds the longest common prefix substring of word
 3    // in the Trie
 4    if (!word || word[0] == '\0')
 5        return NULL;
 6    // Length of the longest prefix
 7    int len = strlen(word);
 8
 9    // We initially set the longest prefix as the word itself,
10    // and try to back-track from the deepest position to
11    // a point of divergence, if it exists
12    char* longest_prefix = (char*) calloc (len + 1, sizeof(char));
13    for (int i=0; word[i] != '\0'; i++)
14        longest_prefix[i] = word[i];
15    longest_prefix[len] = '\0';
16
17    // If there is no branching from the root, this
18    // means that we're matching the original string!
19    // This is not what we want!
20    int branch_idx  = check_divergence(root, longest_prefix) - 1;
21    if (branch_idx >= 0) {
22        // There is branching, We must update the position
23        // to the longest match and update the longest prefix
24        // by the branch index length
25        longest_prefix[branch_idx] = '\0';
26        longest_prefix = (char*) realloc (longest_prefix, (branch_idx + 1) * sizeof(char));
27    }
28
29    return longest_prefix;
30}

这里还有另一个扭曲! 由于我们试图找到最长的匹配,算法实际上会贪婪地匹配原始字符串本身! 这不是我们想要的。

我们想要最长的匹配是 NOT输入字符串,因此,我们必须用另一种方法进行检查,即check_divergence()

这将检查从根到当前位置是否有任何分支,并返回最佳匹配的长度,这是 NOT的输入。

如果我们处于错误的链条中,这与原来的字符串相匹配,那么就不会有分支从点!所以这对我们来说是用check_divergence()来避免那个丑陋的点的好方法。

 1int check_divergence(TrieNode* root, char* word) {
 2    // Checks if there is branching at the last character of word
 3 //and returns the largest position in the word where branching occurs
 4    TrieNode* temp = root;
 5    int len = strlen(word);
 6    if (len == 0)
 7        return 0;
 8    // We will return the largest index where branching occurs
 9    int last_index = 0;
10    for (int i=0; i < len; i++) {
11        int position = word[i] - 'a';
12        if (temp->children[position]) {
13            // If a child exists at that position
14            // we will check if there exists any other child
15            // so that branching occurs
16            for (int j=0; j<N; j++) {
17                if (j != position && temp->children[j]) {
18                    // We've found another child! This is a branch.
19                    // Update the branch position
20                    last_index = i + 1;
21                    break;
22                }
23            }
24            // Go to the next child in the sequence
25            temp = temp->children[position];
26        }
27    }
28    return last_index;
29}

最后,我们确保我们不只是盲目删除整个链条,所以现在让我们继续使用我们的删除方法。

 1TrieNode* delete_trie(TrieNode* root, char* word) {
 2    // Will try to delete the word sequence from the Trie only it
 3    // ends up in a leaf node
 4    if (!root)
 5        return NULL;
 6    if (!word || word[0] == '\0')
 7        return root;
 8    // If the node corresponding to the match is not a leaf node,
 9    // we stop
10    if (!is_leaf_node(root, word)) {
11        return root;
12    }
13    TrieNode* temp = root;
14    // Find the longest prefix string that is not the current word
15    char* longest_prefix = find_longest_prefix(root, word);
16    //printf("Longest Prefix = %s\n", longest_prefix);
17    if (longest_prefix[0] == '\0') {
18        free(longest_prefix);
19        return root;
20    }
21    // Keep track of position in the Trie
22    int i;
23    for (i=0; longest_prefix[i] != '\0'; i++) {
24        int position = (int) longest_prefix[i] - 'a';
25        if (temp->children[position] != NULL) {
26            // Keep moving to the deepest node in the common prefix
27            temp = temp->children[position];
28        }
29        else {
30            // There is no such node. Simply return.
31            free(longest_prefix);
32            return root;
33        }
34    }
35    // Now, we have reached the deepest common node between
36    // the two strings. We need to delete the sequence
37    // corresponding to word
38    int len = strlen(word);
39    for (; i < len; i++) {
40        int position = (int) word[i] - 'a';
41        if (temp->children[position]) {
42            // Delete the remaining sequence
43            TrieNode* rm_node = temp->children[position];
44            temp->children[position] = NULL;
45            free_trienode(rm_node);
46        }
47    }
48    free(longest_prefix);
49    return root;
50}

上面的代码仅仅会找到前缀匹配的最深节点,并从 Trie 中删除剩余的序列匹配单词,因为这与任何其他匹配无关。

上述程序的时间复杂性

程序的时间复杂性在下面提到。

ProcedureTime Complexity of Implementation
search_trie()O(n) -> n is the length of the input string
insert_trie()O(n) -> n is the length of the input string
delete_trie()O(C*n) -> C is the number of alphabets,
n is the length of the input word

在几乎所有情况下,字母数是常数,所以 delete_trie() 的复杂性也减少到 O(n)


用于 Trie 数据结构的完整 C/C++ 程序

最后,我们(希望)完成了我们的delete_trie()函数,让我们检查我们所写的内容是否正确,使用我们的驱动程序。

  1#include <stdio.h>
  2#include <stdlib.h>
  3#include <string.h>
  4
  5// The number of children for each node
  6// We will construct a N-ary tree and make it
  7// a Trie
  8// Since we have 26 english letters, we need
  9// 26 children per node
 10#define N 26
 11
 12typedef struct TrieNode TrieNode;
 13
 14struct TrieNode {
 15    // The Trie Node Structure
 16    // Each node has N children, starting from the root
 17    // and a flag to check if it's a leaf node
 18    char data; // Storing for printing purposes only
 19    TrieNode* children[N];
 20    int is_leaf;
 21};
 22
 23TrieNode* make_trienode(char data) {
 24    // Allocate memory for a TrieNode
 25    TrieNode* node = (TrieNode*) calloc (1, sizeof(TrieNode));
 26    for (int i=0; i<N; i++)
 27        node->children[i] = NULL;
 28    node->is_leaf = 0;
 29    node->data = data;
 30    return node;
 31}
 32
 33void free_trienode(TrieNode* node) {
 34    // Free the trienode sequence
 35    for(int i=0; i<N; i++) {
 36        if (node->children[i] != NULL) {
 37            free_trienode(node->children[i]);
 38        }
 39        else {
 40            continue;
 41        }
 42    }
 43    free(node);
 44}
 45
 46TrieNode* insert_trie(TrieNode* root, char* word) {
 47    // Inserts the word onto the Trie
 48    // ASSUMPTION: The word only has lower case characters
 49    TrieNode* temp = root;
 50
 51    for (int i=0; word[i] != '\0'; i++) {
 52        // Get the relative position in the alphabet list
 53        int idx = (int) word[i] - 'a';
 54        if (temp->children[idx] == NULL) {
 55            // If the corresponding child doesn't exist,
 56            // simply create that child!
 57            temp->children[idx] = make_trienode(word[i]);
 58        }
 59        else {
 60            // Do nothing. The node already exists
 61        }
 62        // Go down a level, to the child referenced by idx
 63        // since we have a prefix match
 64        temp = temp->children[idx];
 65    }
 66    // At the end of the word, mark this node as the leaf node
 67    temp->is_leaf = 1;
 68    return root;
 69}
 70
 71int search_trie(TrieNode* root, char* word)
 72{
 73    // Searches for word in the Trie
 74    TrieNode* temp = root;
 75
 76    for(int i=0; word[i]!='\0'; i++)
 77    {
 78        int position = word[i] - 'a';
 79        if (temp->children[position] == NULL)
 80            return 0;
 81        temp = temp->children[position];
 82    }
 83    if (temp != NULL && temp->is_leaf == 1)
 84        return 1;
 85    return 0;
 86}
 87
 88int check_divergence(TrieNode* root, char* word) {
 89    // Checks if there is branching at the last character of word
 90    // and returns the largest position in the word where branching occurs
 91    TrieNode* temp = root;
 92    int len = strlen(word);
 93    if (len == 0)
 94        return 0;
 95    // We will return the largest index where branching occurs
 96    int last_index = 0;
 97    for (int i=0; i < len; i++) {
 98        int position = word[i] - 'a';
 99        if (temp->children[position]) {
100            // If a child exists at that position
101            // we will check if there exists any other child
102            // so that branching occurs
103            for (int j=0; j<N; j++) {
104                if (j != position && temp->children[j]) {
105                    // We've found another child! This is a branch.
106                    // Update the branch position
107                    last_index = i + 1;
108                    break;
109                }
110            }
111            // Go to the next child in the sequence
112            temp = temp->children[position];
113        }
114    }
115    return last_index;
116}
117
118char* find_longest_prefix(TrieNode* root, char* word) {
119    // Finds the longest common prefix substring of word
120    // in the Trie
121    if (!word || word[0] == '\0')
122        return NULL;
123    // Length of the longest prefix
124    int len = strlen(word);
125
126    // We initially set the longest prefix as the word itself,
127    // and try to back-tracking from the deepst position to
128    // a point of divergence, if it exists
129    char* longest_prefix = (char*) calloc (len + 1, sizeof(char));
130    for (int i=0; word[i] != '\0'; i++)
131        longest_prefix[i] = word[i];
132    longest_prefix[len] = '\0';
133
134    // If there is no branching from the root, this
135    // means that we're matching the original string!
136    // This is not what we want!
137    int branch_idx  = check_divergence(root, longest_prefix) - 1;
138    if (branch_idx >= 0) {
139        // There is branching, We must update the position
140        // to the longest match and update the longest prefix
141        // by the branch index length
142        longest_prefix[branch_idx] = '\0';
143        longest_prefix = (char*) realloc (longest_prefix, (branch_idx + 1) * sizeof(char));
144    }
145
146    return longest_prefix;
147}
148
149int is_leaf_node(TrieNode* root, char* word) {
150    // Checks if the prefix match of word and root
151    // is a leaf node
152    TrieNode* temp = root;
153    for (int i=0; word[i]; i++) {
154        int position = (int) word[i] - 'a';
155        if (temp->children[position]) {
156            temp = temp->children[position];
157        }
158    }
159    return temp->is_leaf;
160}
161
162TrieNode* delete_trie(TrieNode* root, char* word) {
163    // Will try to delete the word sequence from the Trie only it
164    // ends up in a leaf node
165    if (!root)
166        return NULL;
167    if (!word || word[0] == '\0')
168        return root;
169    // If the node corresponding to the match is not a leaf node,
170    // we stop
171    if (!is_leaf_node(root, word)) {
172        return root;
173    }
174    TrieNode* temp = root;
175    // Find the longest prefix string that is not the current word
176    char* longest_prefix = find_longest_prefix(root, word);
177    //printf("Longest Prefix = %s\n", longest_prefix);
178    if (longest_prefix[0] == '\0') {
179        free(longest_prefix);
180        return root;
181    }
182    // Keep track of position in the Trie
183    int i;
184    for (i=0; longest_prefix[i] != '\0'; i++) {
185        int position = (int) longest_prefix[i] - 'a';
186        if (temp->children[position] != NULL) {
187            // Keep moving to the deepest node in the common prefix
188            temp = temp->children[position];
189        }
190        else {
191            // There is no such node. Simply return.
192            free(longest_prefix);
193            return root;
194        }
195    }
196    // Now, we have reached the deepest common node between
197    // the two strings. We need to delete the sequence
198    // corresponding to word
199    int len = strlen(word);
200    for (; i < len; i++) {
201        int position = (int) word[i] - 'a';
202        if (temp->children[position]) {
203            // Delete the remaining sequence
204            TrieNode* rm_node = temp->children[position];
205            temp->children[position] = NULL;
206            free_trienode(rm_node);
207        }
208    }
209    free(longest_prefix);
210    return root;
211}
212
213void print_trie(TrieNode* root) {
214    // Prints the nodes of the trie
215    if (!root)
216        return;
217    TrieNode* temp = root;
218    printf("%c -> ", temp->data);
219    for (int i=0; i<N; i++) {
220        print_trie(temp->children[i]);
221    }
222}
223
224void print_search(TrieNode* root, char* word) {
225    printf("Searching for %s: ", word);
226    if (search_trie(root, word) == 0)
227        printf("Not Found\n");
228    else
229        printf("Found!\n");
230}
231
232int main() {
233    // Driver program for the Trie Data Structure Operations
234    TrieNode* root = make_trienode('\0');
235    root = insert_trie(root, "hello");
236    root = insert_trie(root, "hi");
237    root = insert_trie(root, "teabag");
238    root = insert_trie(root, "teacan");
239    print_search(root, "tea");
240    print_search(root, "teabag");
241    print_search(root, "teacan");
242    print_search(root, "hi");
243    print_search(root, "hey");
244    print_search(root, "hello");
245    print_trie(root);
246    printf("\n");
247    root = delete_trie(root, "hello");
248    printf("After deleting 'hello'...\n");
249    print_trie(root);
250    printf("\n");
251    root = delete_trie(root, "teacan");
252    printf("After deleting 'teacan'...\n");
253    print_trie(root);
254    printf("\n");
255    free_trienode(root);
256    return 0;
257}

出发点( )

 1Searching for tea: Not Found
 2Searching for teabag: Found!
 3Searching for teacan: Found!
 4Searching for hi: Found!
 5Searching for hey: Not Found
 6Searching for hello: Found!
 7 -> h -> e -> l -> l -> o -> i -> t -> e -> a -> b -> a -> g -> c -> a -> n ->
 8After deleting 'hello'...
 9 -> h -> i -> t -> e -> a -> b -> a -> g -> c -> a -> n ->
10After deleting 'teacan'...
11 -> h -> i -> t -> e -> a -> b -> a -> g ->

因此,我们已经到达了我们在 C/C++ 中的 Trie Data Structure 实现的尽头,我知道这是一个漫长的阅读,但希望你已经明白了如何正确地应用这些方法!


下载代码

你可以在我上传的 Github Gist中找到完整的代码,这可能不是最有效的代码,但我已经尽力确保它正常工作。

如果您有任何疑问或建议,请在下面的评论部分提出它们!


参考

  • [ 维基百科 文章 】(https://en.wikipedia.org/wiki/Trie)

推荐阅读:

如果您对类似主题感兴趣,您可以参阅数据结构和算法( / 社区 / 教程 / 数据结构 - 算法)部分,其中包括哈希表和图表理论等主题。


Published At
Categories with 技术
comments powered by Disqus
