在本教程中,我们将学习如何使用Kotlin编程在Android应用程序中创建按钮。
Android按钮概述
Android Button类扩展了TextView。按钮是一个UI小部件,用于从用户获取点击交互以触发应用程序中的操作。可以在XML布局中创建按钮,也可以在Android Studio项目中创建Kotlin活动类。
在XML布局中创建按钮
1<Button
2android:id="@+id/button"
3android:layout_width="wrap_content"
4android:layout_height="wrap_content"
5android:text="Androidly Button"/>
- android:用于设置按钮上的唯一标识。
android:ext
用于设置按钮内部的文本。默认情况下,文本以大写字母显示。android:onClick
用于定义点击按钮时在活动中调用的Kotlin函数。它是一个点击监听程序。android:Backmark
用于设置按钮上的背景颜色/可绘制。
提示 :要避免显示大写字母,请使用属性android:textAllCaps=
false``
关于如何在XML布局中自定义按钮的更多详细信息,请参考Android按钮教程。
按钮点击监听器
我们也可以通过编程方式设置按钮监听器。以下是两个主要的听众:
1.setOnClickListener
-点击按钮时触发。
2.setOnLongClickListner
-按钮长按时触发。
下面的代码段在按钮上设置了setOnClickList。
1button.setOnClickListener(object : View.OnClickListener {
2 override fun onClick(v: View?) {
3 //your implementation goes here
4 }
5 })
上面的代码可以转换为lambda表达式以使其简短。
1button.setOnClickListener {
2 textView.text = "Androidly Buttons"
3 }
同样,setOnLongClickListener可以按以下方式定义。
1button.setOnLongClickListener {
2 textView.text = "Androidly Button Long click"
3 true
4 }
5
6//or
7button.setOnLongClickListener {
8 textView.text = "Androidly Button Long click"
9 false
10 }
在上面的代码中,每个表达式中的最后一个语句是return语句。
- 如果setOnLongClickList返回true,则意味着不会触发setOnClickList。
- 如果setOnLongClickList返回false,则意味着将触发setOnClickList。
这就是所谓的消费事件 。第一个案例使用该事件。
使用Kotlin的Android按钮
我们将开发一个应用程序,用于在单击按钮时递增TextView的计数器。我们将使用Kotlin来创建按钮。我们还将了解不同的按钮点击处理程序。
1.项目结构

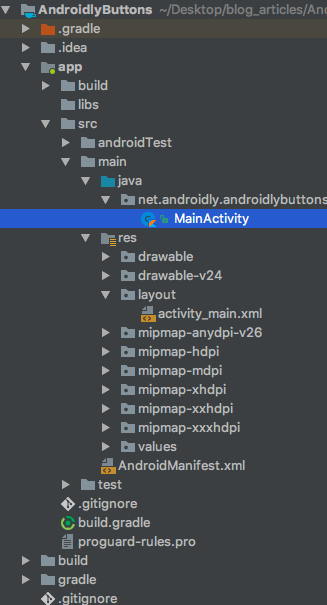

创建一个新的Android Studio项目。确保在初始设置中启用Kotlin支持。完成后,下面是您应该看到的项目结构。
2.Kotlin按钮代码
ACTIVATION_MAIN.Layout文件类似以下代码。
1<?xml version="1.0" encoding="utf-8"?>
2<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
3 android:id="@+id/linearLayout"
4 android:layout_width="match_parent"
5 android:layout_height="match_parent"
6 android:gravity="center"
7 android:orientation="vertical">
8
9 <TextView
10 android:id="@+id/txtCounter"
11 android:layout_width="wrap_content"
12 android:layout_height="wrap_content"
13 android:text="@string/number_zero"
14 android:textAppearance="@style/TextAppearance.AppCompat.Display2"
15 android:textColor="#000" />
16
17 <Button
18 android:id="@+id/btnIncrementByOne"
19 android:layout_width="wrap_content"
20 android:layout_height="wrap_content"
21 android:onClick="addOne"
22 android:text="@string/increment_by_one" />
23
24</LinearLayout>

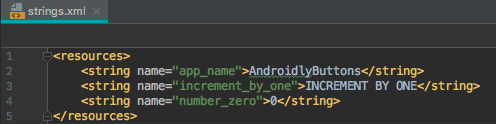

我们已经使用了LinearLayout,它以线性方式(水平或垂直)保存视图。建议在字符串.xml文件中设置字符串,而不是对它们进行硬编码。为了获取字符串资源,我们使用@字符串/名称_of_字符串
。函数
addOne(view:view)
在MainActivity.kt Kotlin类中定义。MainActivity.kt类的代码如下所示。
1package net.androidly.androidlybuttons
2
3import android.support.v7.app.AppCompatActivity
4import android.os.Bundle
5import android.support.v4.content.ContextCompat
6import android.view.View
7import android.view.ViewGroup
8import android.widget.Button
9import android.widget.LinearLayout
10import kotlinx.android.synthetic.main.activity_main.*
11
12class MainActivity : AppCompatActivity(), View.OnClickListener {
13
14 override fun onCreate(savedInstanceState: Bundle?) {
15 super.onCreate(savedInstanceState)
16 setContentView(R.layout.activity_main)
17
18 var androidlyButton = Button(this)
19 androidlyButton.apply {
20 layoutParams = LinearLayout.LayoutParams(LinearLayout.LayoutParams.MATCH_PARENT, ViewGroup.LayoutParams.WRAP_CONTENT)
21 text = "Double the value"
22 setAllCaps(false)
23 textSize = 20f
24 id = R.id.btnDouble
25 }
26
27 androidlyButton.setOnClickListener(this)
28 linearLayout.addView(androidlyButton)
29
30 androidlyButton = Button(this)
31 androidlyButton.apply {
32 layoutParams = LinearLayout.LayoutParams(LinearLayout.LayoutParams.WRAP_CONTENT, ViewGroup.LayoutParams.WRAP_CONTENT)
33 text = "RESET"
34 textSize = 20f
35 setTextColor(ContextCompat.getColor(this@MainActivity, R.color.colorPrimaryDark))
36 id = R.id.btnReset
37 setOnLongClickListener {
38 txtCounter.text = 0.toString()
39 true
40 }
41 }
42 androidlyButton.setOnClickListener(this)
43 linearLayout.addView(androidlyButton)
44
45 }
46
47 override fun onClick(v: View?) {
48 when (v?.id) {
49 R.id.btnDouble -> {
50 txtCounter.text = (txtCounter.text.toString().toInt() * 2).toString()
51 }
52 R.id.btnReset -> {
53 txtCounter.text = (-100).toString()
54 }
55 else -> {
56 }
57 }
58 }
59
60 fun addOne(view: View) {
61 txtCounter.text = (txtCounter.text.toString().toInt() + 1).toString()
62 }
63}
要点:
1.IMPORT kotlinx.android.synthetic.main.activity_main.*
语句自动从我们类的xml中获取视图ID。因此,我们不必再使用findViewByID。
2.点击btnIncrementByOne
会触发Fun addOne(view:view)
。函数声明中必须定义(view:view)
参数。
3.以编程方式创建一个Button,并使用以下代码在父视图(此处为LinearLayout)中设置它。
1Var androidlyButton=Button(This)
2LinearLayout.addView(AndroidlyButton)
4.可以使用Apply{}
lambda表达式,而不是在Button类上调用成员函数。
5.layoutParams
用于定义按钮的宽度和高度。Match_PARENT
将宽度/高度设置为等于线性布局。WRAP_CONTENT
将视图包装到内容的大小。

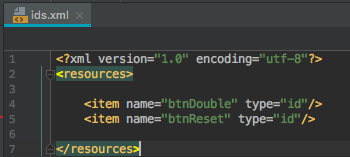

6.可以在res|Values|ids.xml 下以编程方式设置id。
7.我们在
MainActivity.kt
类中定义了View.OnClickListener
接口。因此,我们需要覆盖它的onClick()函数。
8.在onClick
函数内部,我们使用了Kotlin When语句,相当于其他语言中的Switch。
9.要触发onClick
函数,必须使用上下文(this
)在按钮上注册setOnClickListener
。

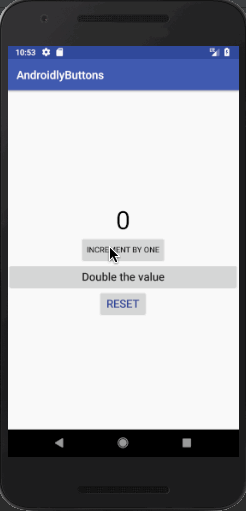

输出:
下载项目:AndroidlyButtons
